Waterscreens

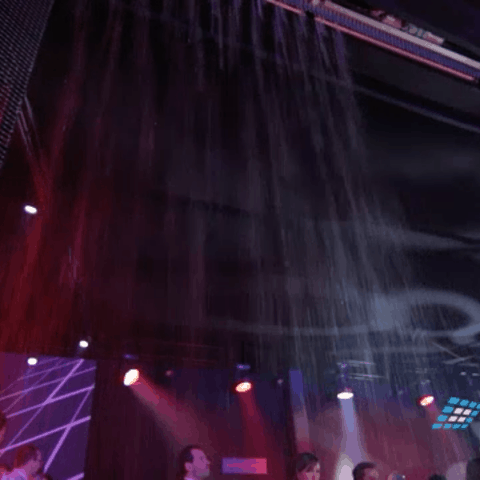

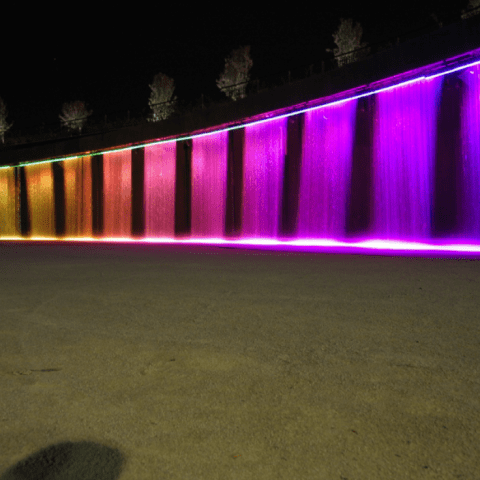

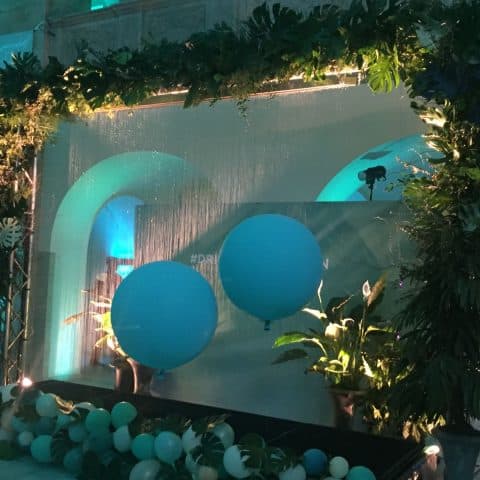

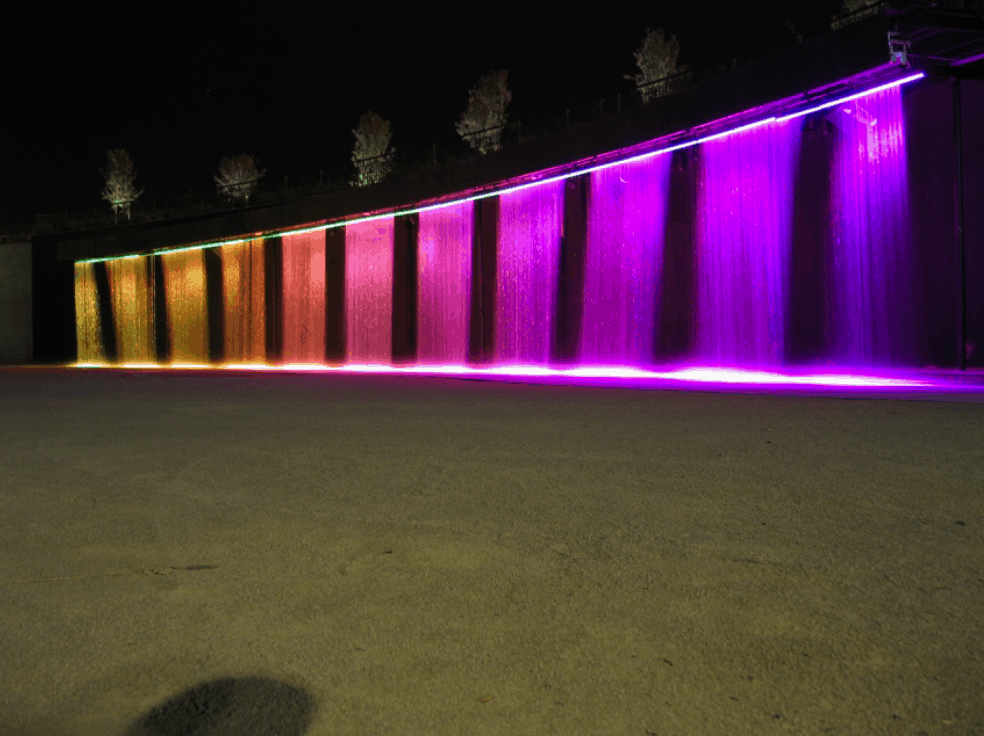

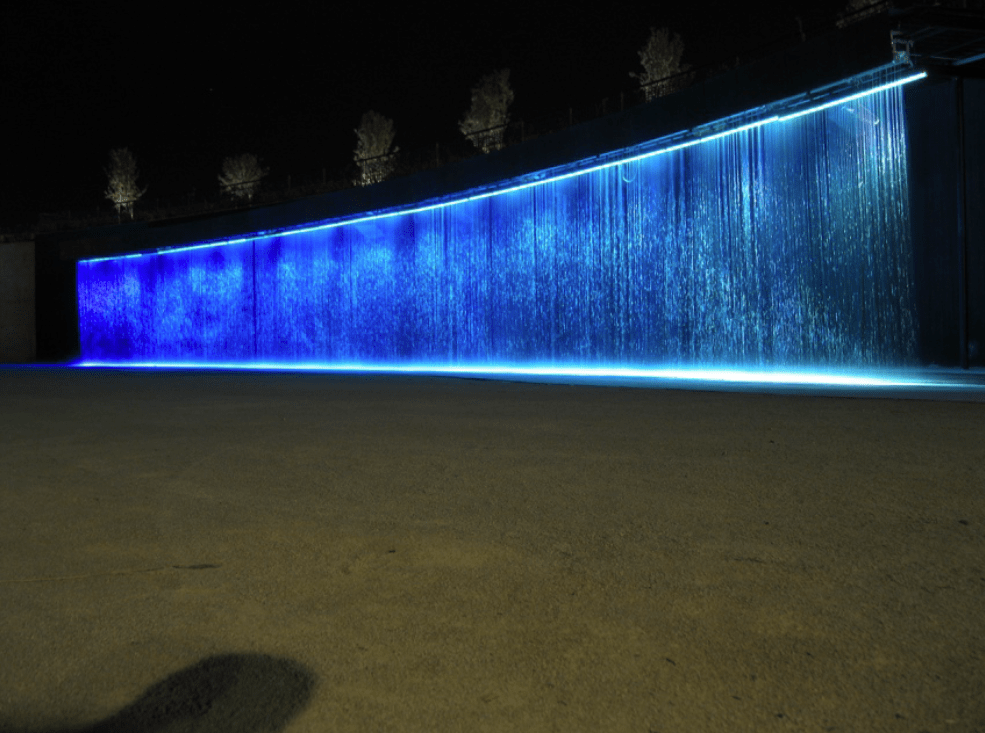

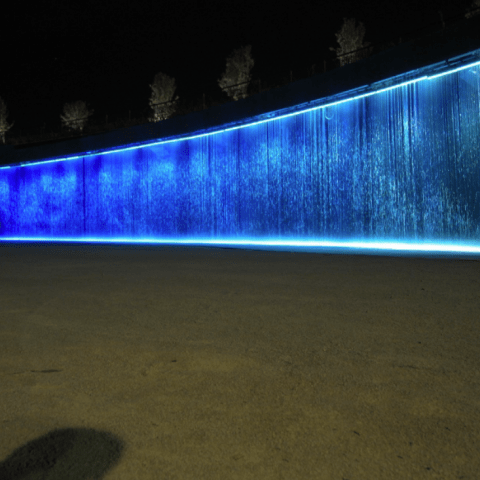

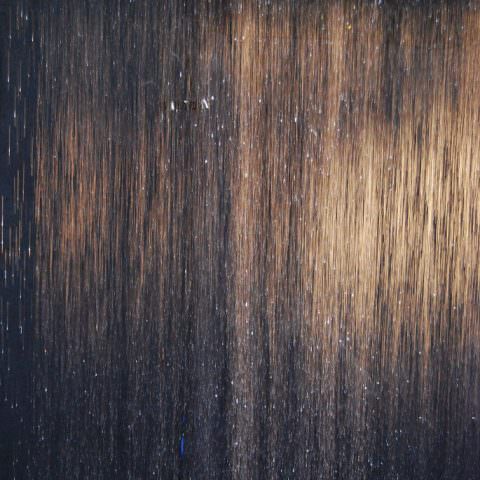

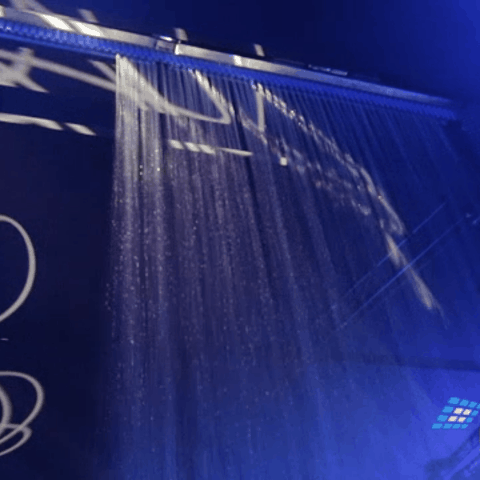

A water screen is a closed water installation that can be mounted in max. 10 m height and any width. The system consists of a water tube with ca. 333 single jets per meter. The jets form a closed water beam curtain that falls down into the water catch basin. This basin is mostly build from traverses and foil and is only 30 cm deep. The length of the basin should be 2m longer that the water screen and 2 m in width to catch all the water that is falling down. The higher the wall, the bigger the basin has to be to catch all water.

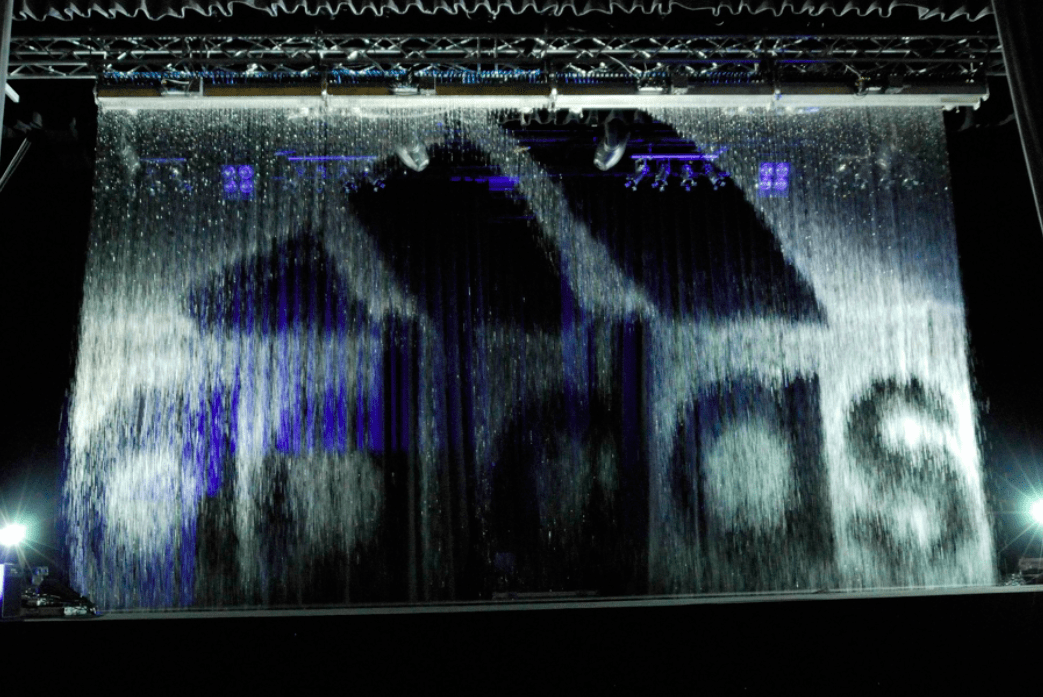

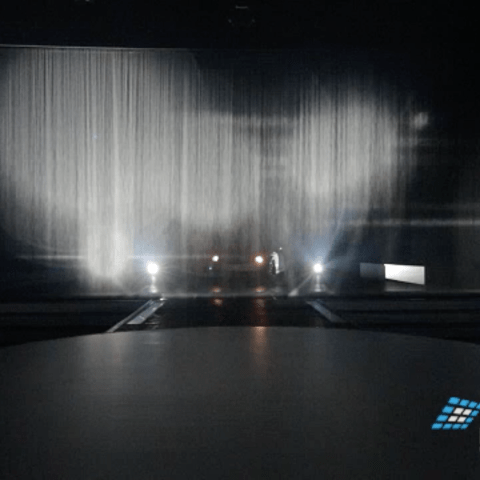

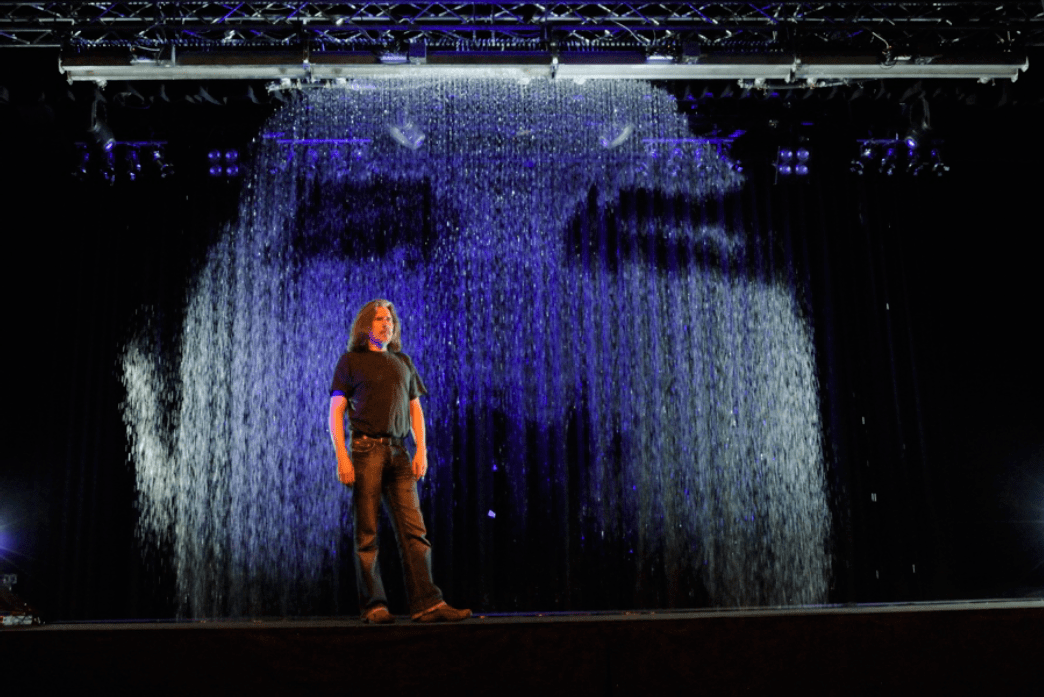

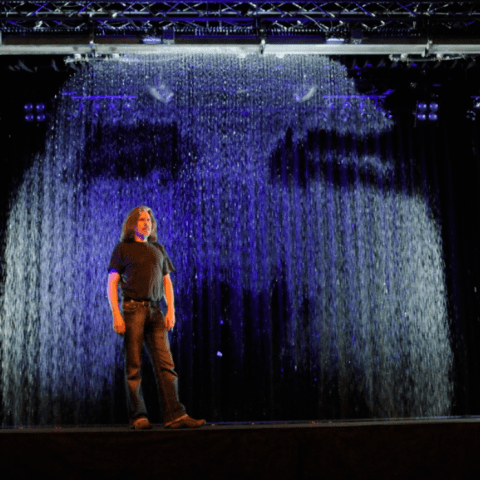

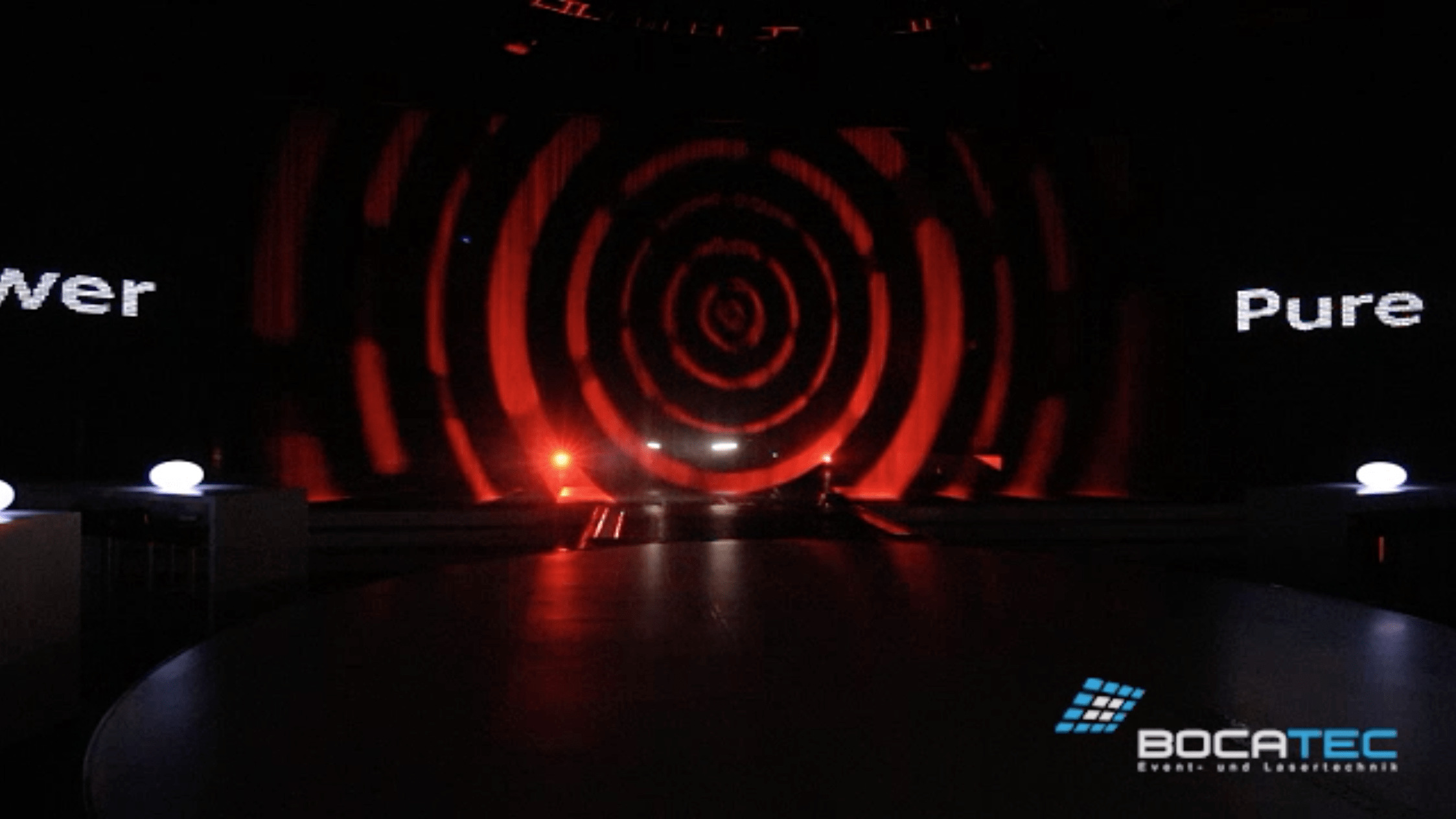

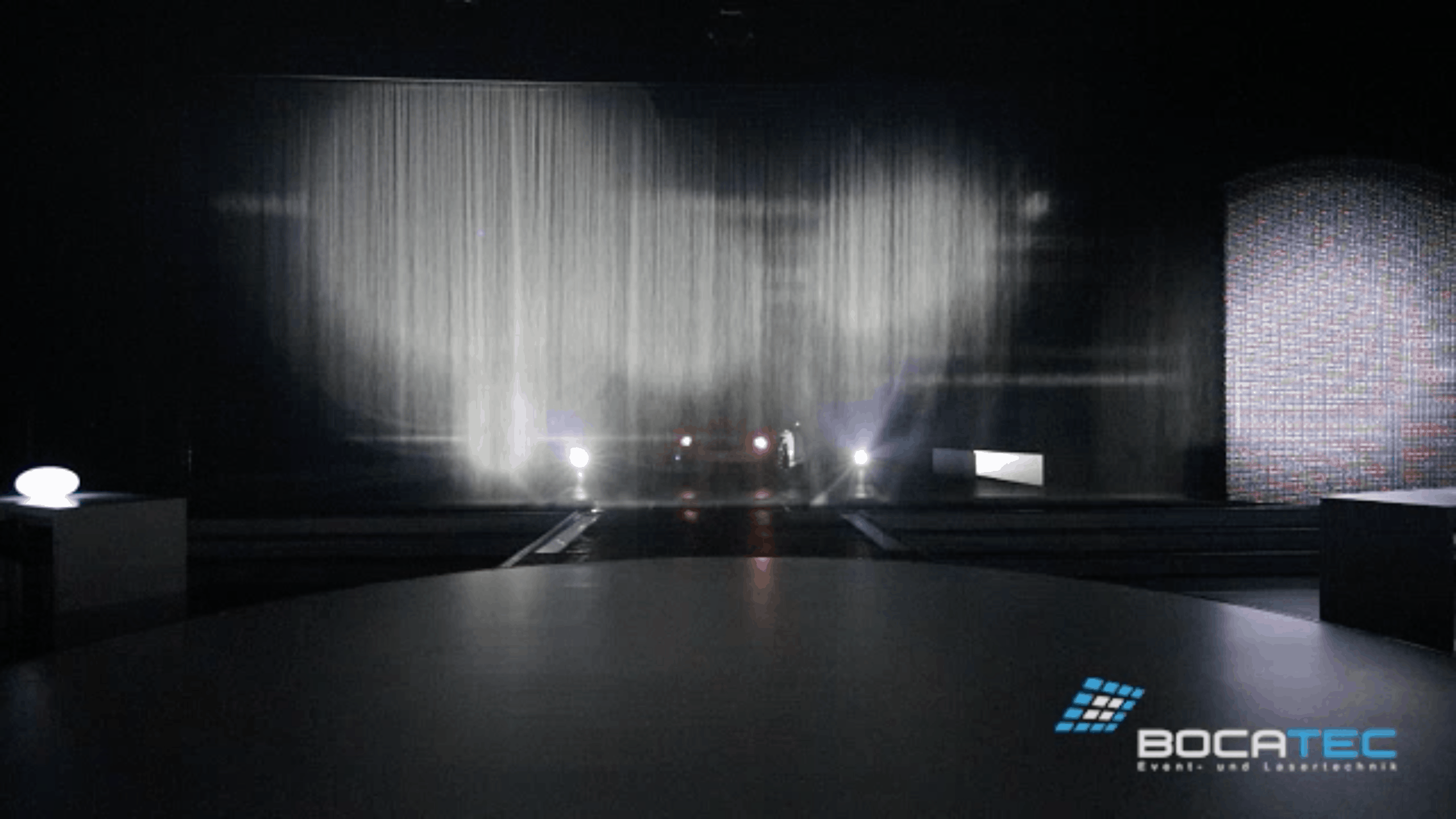

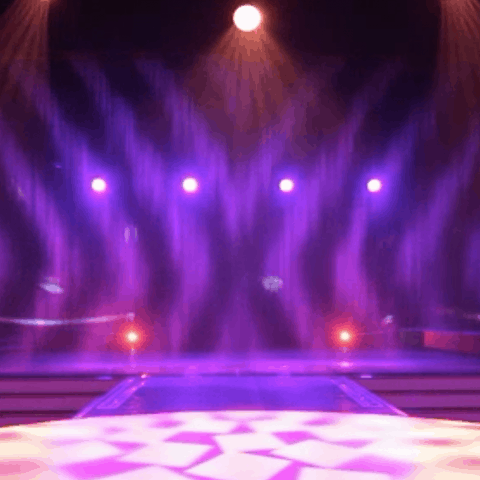

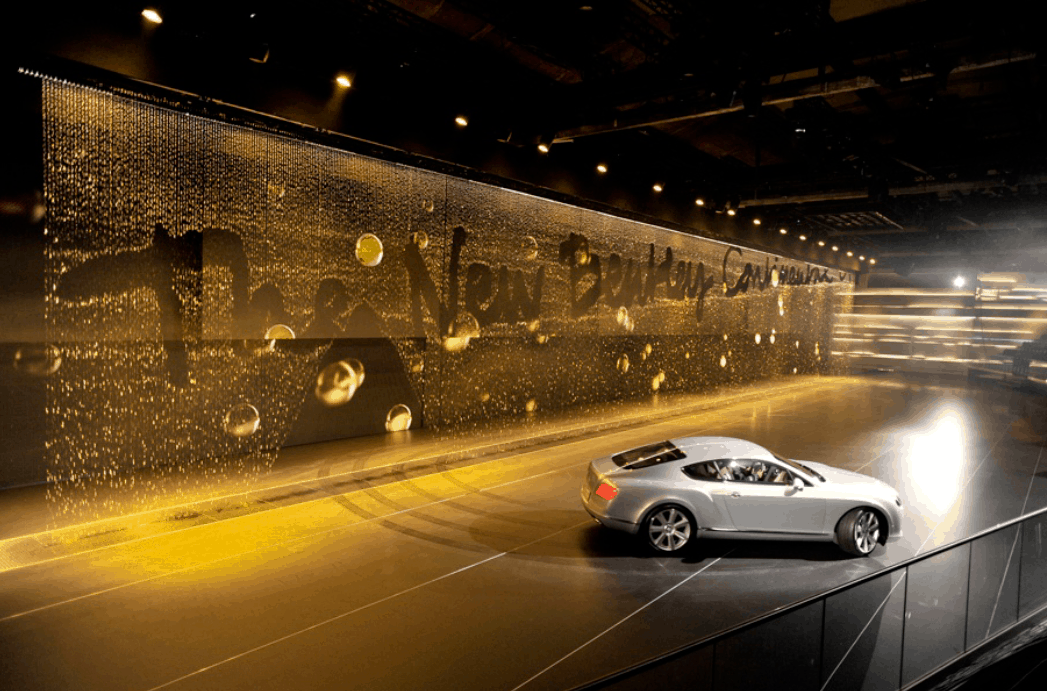

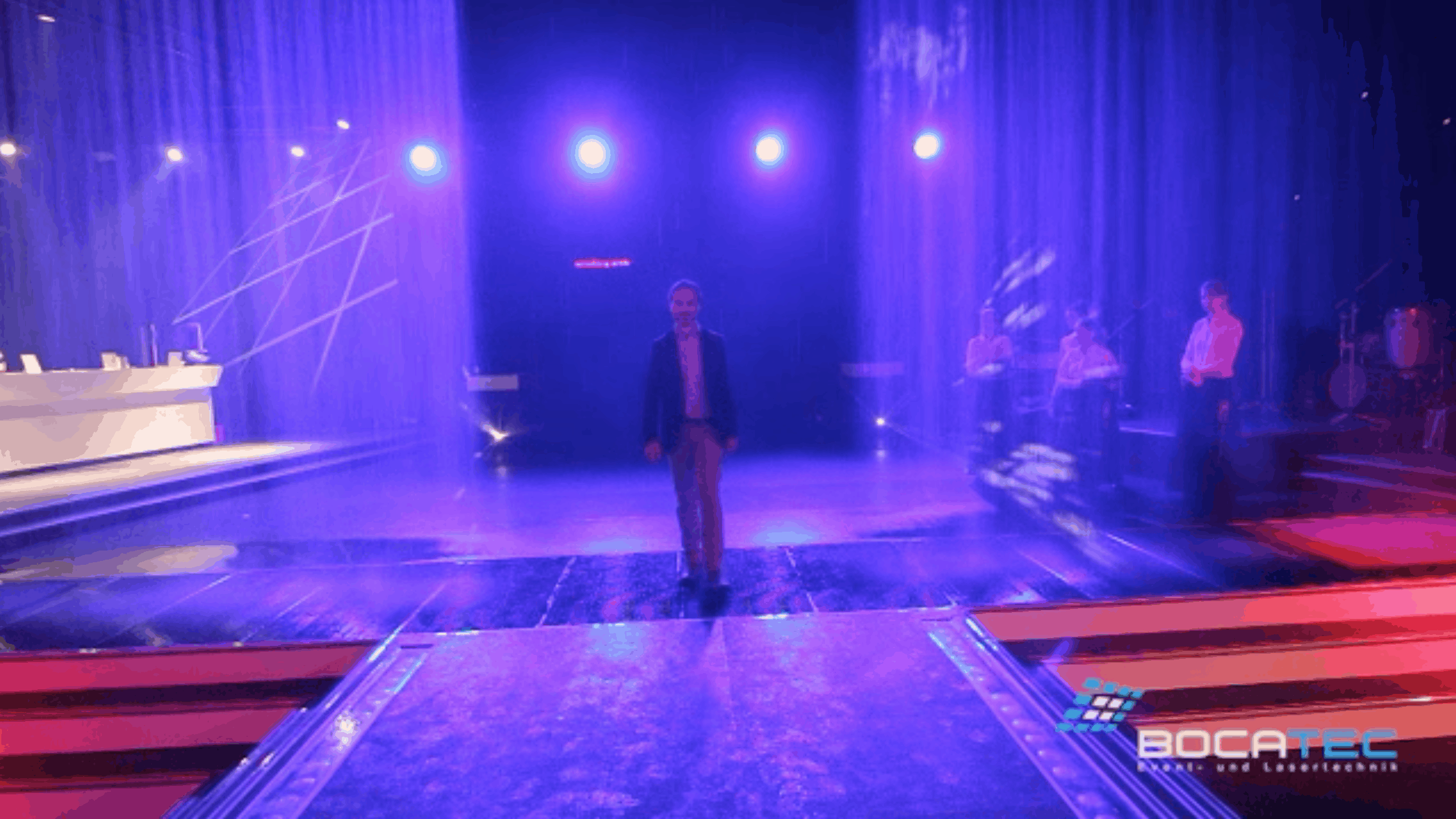

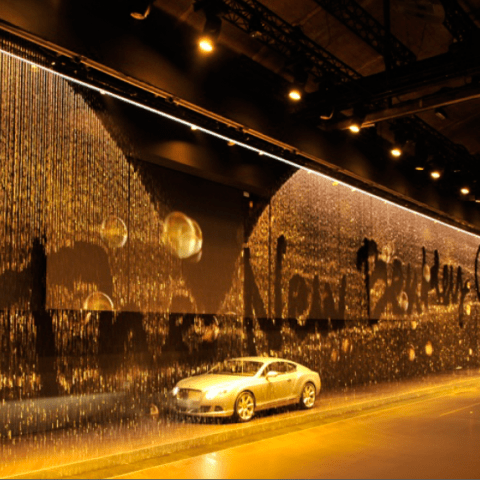

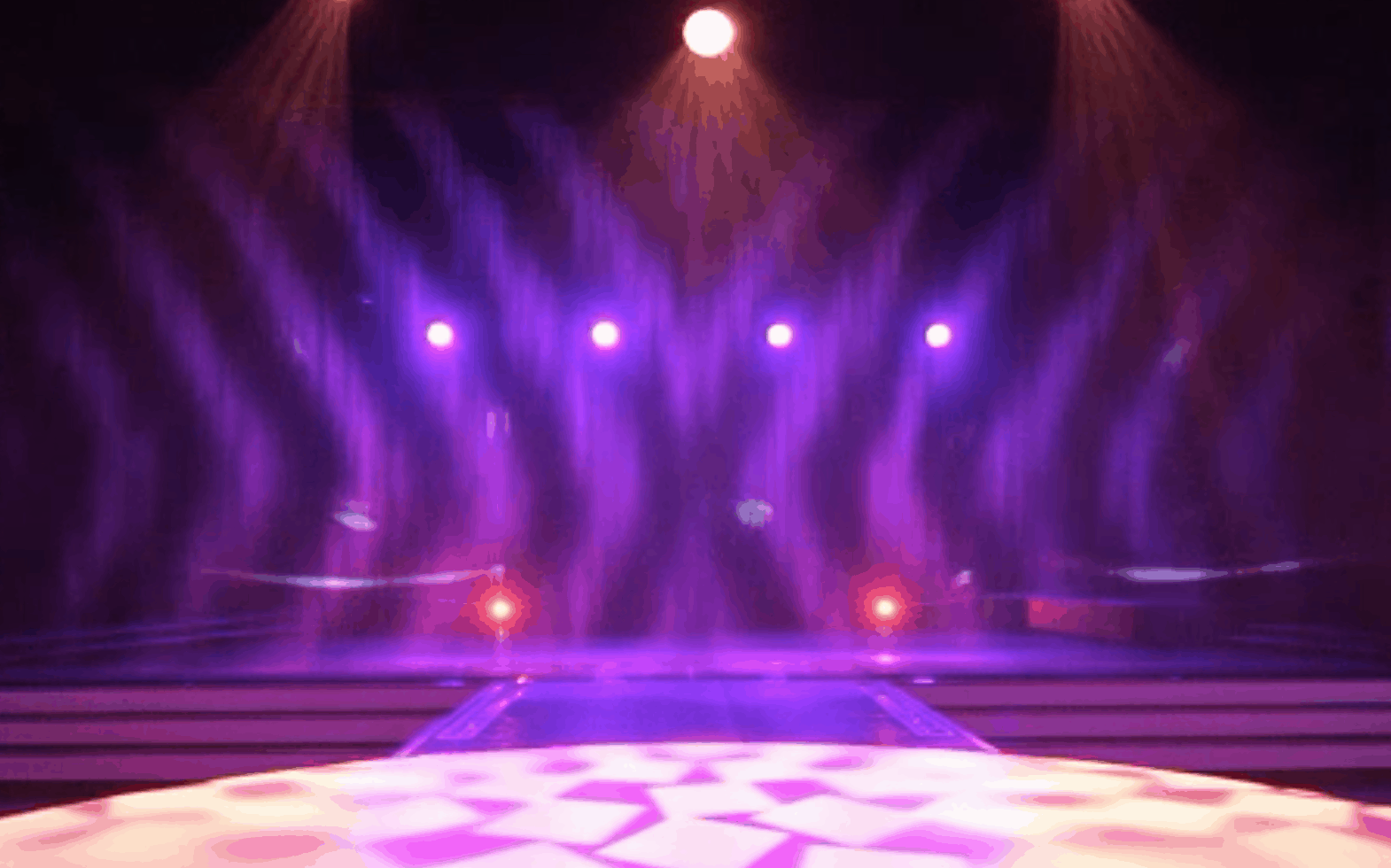

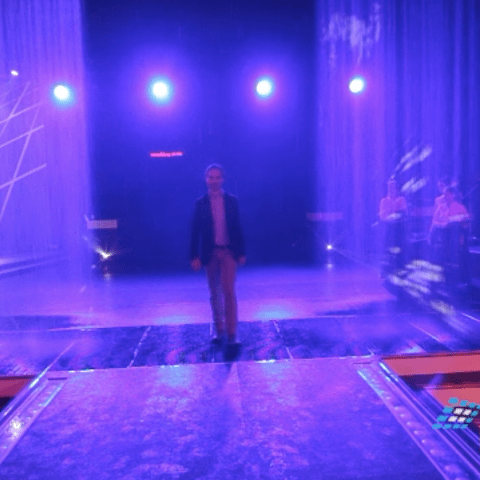

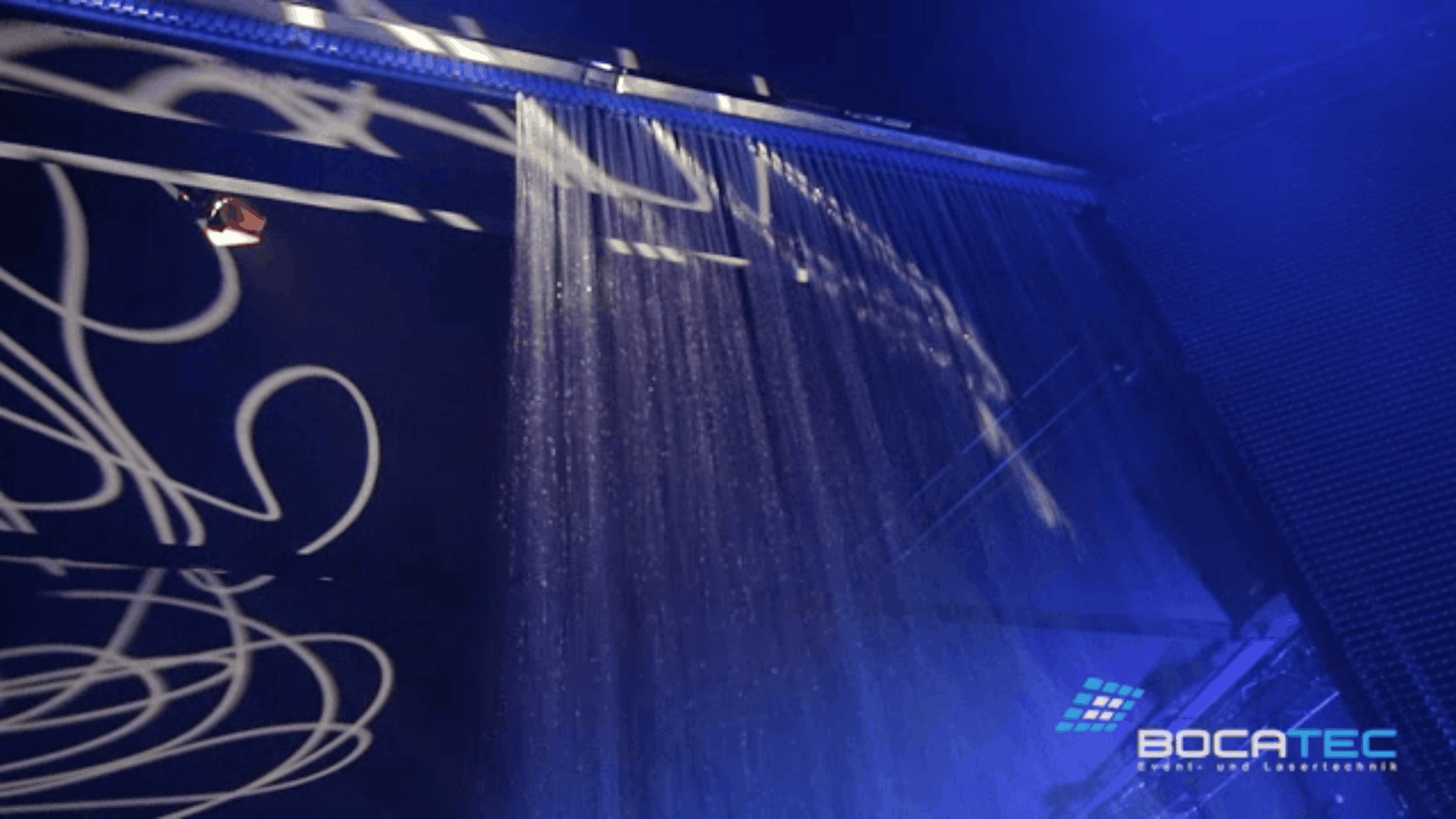

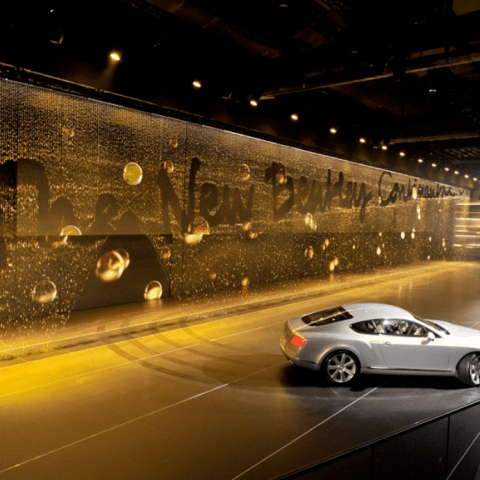

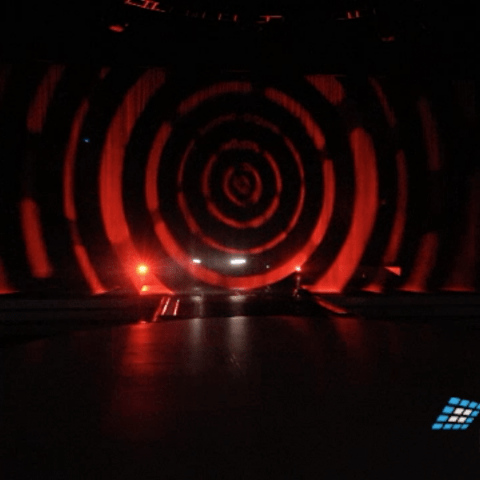

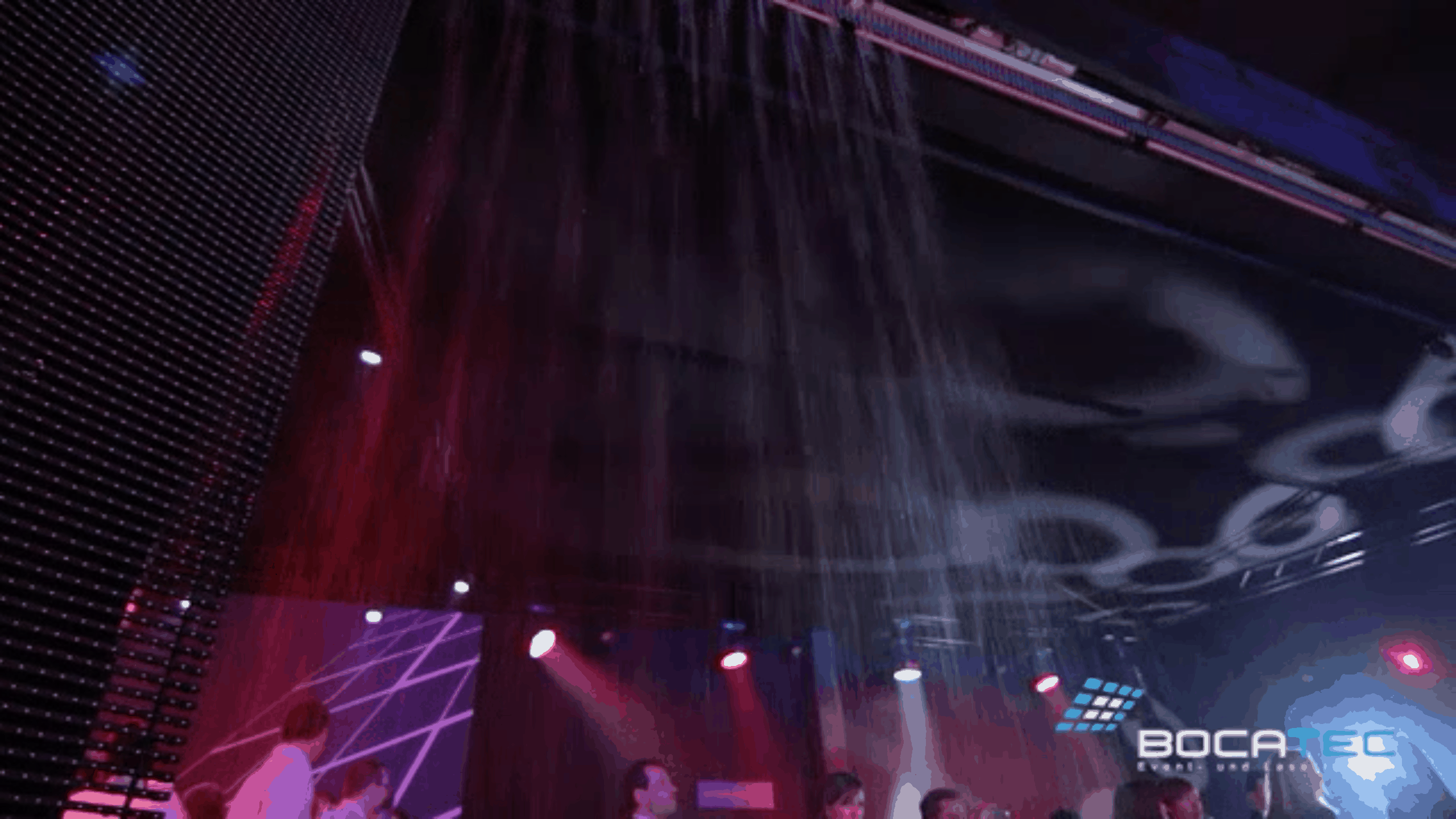

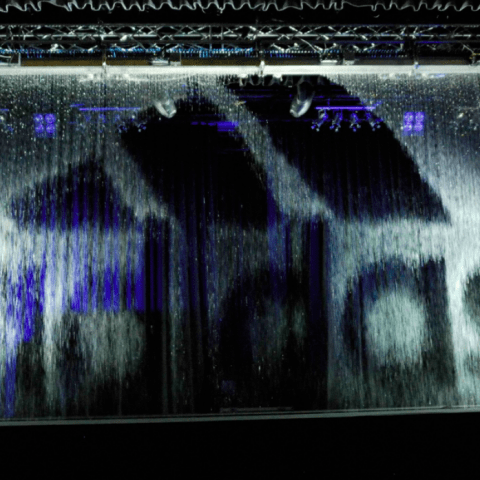

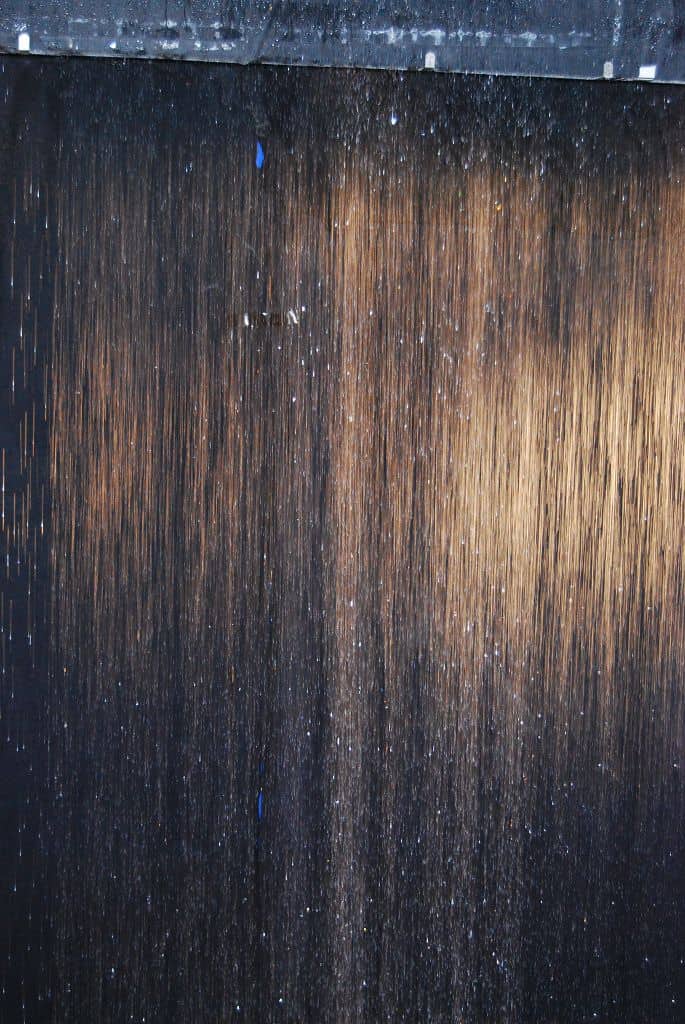

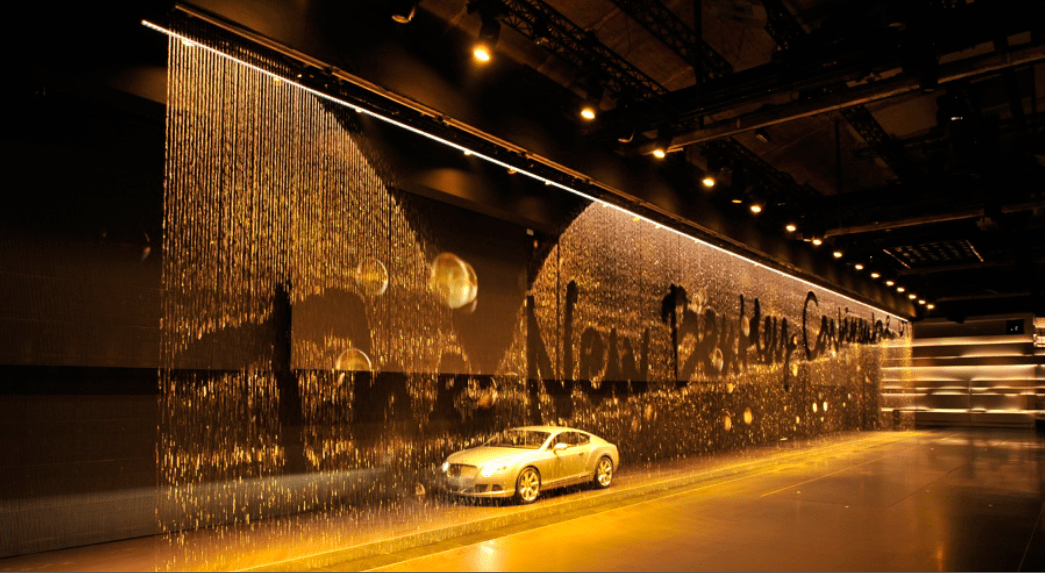

The close water curtain allows for fascinating projections of all kind, e.g. of videos, pictures, logos or laser projections. Water screens are only suitable for back projections.

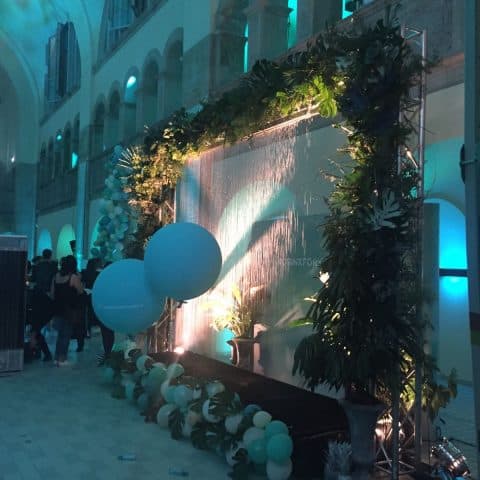

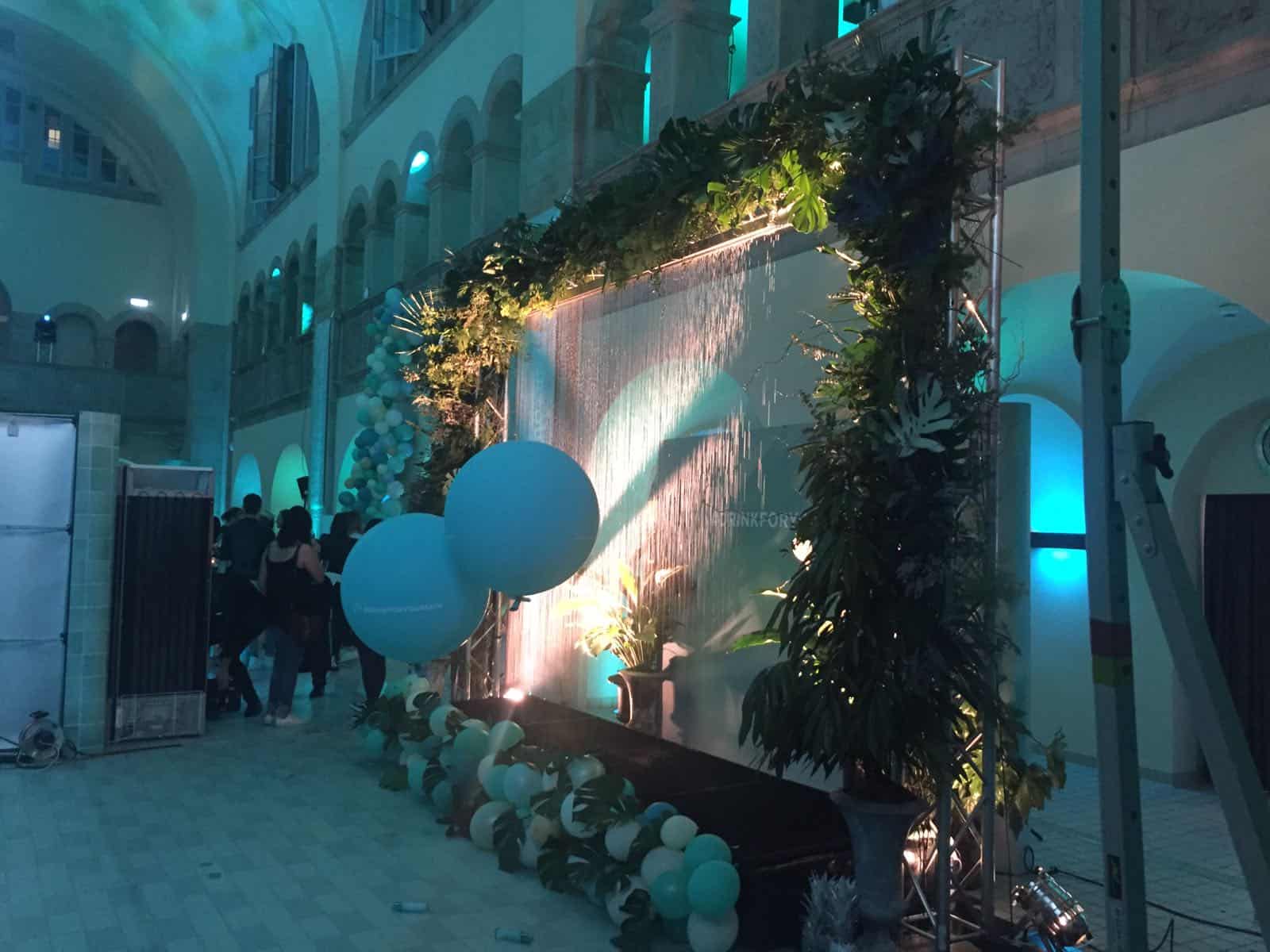

The use of a water screen is also possible as room separation or air humidifier.
Technical details:
- Length per water tube: 2 or 3 meter (expandable randomly)
- Height of the installation: max. 10m
- Resolution: 3 alternated jet rows. 333 jets per meter.
- Only suited for sweet water applications!
